Data Sheet
|
|
||
| ¡¡ | ¡¡ |
Data Sheet |

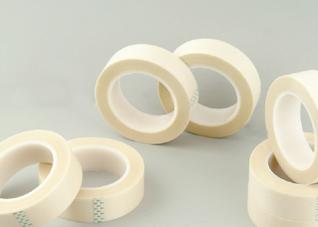

Glass Cloth adhesive tape ST790/790RL
Properties and Application:
The tape is made of Glass cloth coated with acrylic resin, which shows excellent electrical, mechanical and anti-solvent
properties, widely used in coil, slot and liner insulation of motors and other electrical equipments. The RL type include the
release film.
¡¡
Main Specification:
|
Items |
Acrylic Resin |
|
|
Type |
ST790 |
ST790-RL |
|
Color |
White |
White |
|
Overall Thickness (mm) |
0.18¡À0.005 |
0.23¡À0.01 |
|
Backing Thickness (mm) |
0.125¡À0.005 |
0.125¡À0.005 |
|
Release pet film |
---- |
0.05/0.075 |
|
Tensile Strength (KN/m) |
> 26 |
> 26 |
|
*Peel Strength (N/m) |
> 200 |
> 200 |
|
Elongation at rupture (%) |
> 5 |
> 5 |
|
Breakdown Voltage (KV) |
>2.5 |
>2.5 |
|
Long-term working Temp. |
150c |
|
|
Temp. Range |
-50~150C¡ă |
|
|
Standard Length (m) |
33¡À0.5 |
10¡À0.5 |
|
Maximum Width (mm) |
3~980 |
|
*As for the Peel Strength of Silicone tape, there are two types, one is nominal one with typical value 240N/m,
the other is higher one with typical value about 300N/m, please let us know which kind your prefer.
¡¡
Product supply
1. Shelf Life: one year from the data of delivery. It can still be used
if it is qualified by testing after one year according to above
2. Package: In Carton
3. MOQ: 1000 M2 in a lot
¡¡
Note
1.Above values are the accumulative typical ones by recognized testing method, but, in order to ensure you to
select our products properly, please refer to above specification and test the samples based on your using
purpose or feel free to contact our engineers for further and better understanding.
2. The color is only confirmed by samples.
3. Die-cutting according to drawings and slitting according to customers¡¯ requirement are available.
¡¡
¡¡
