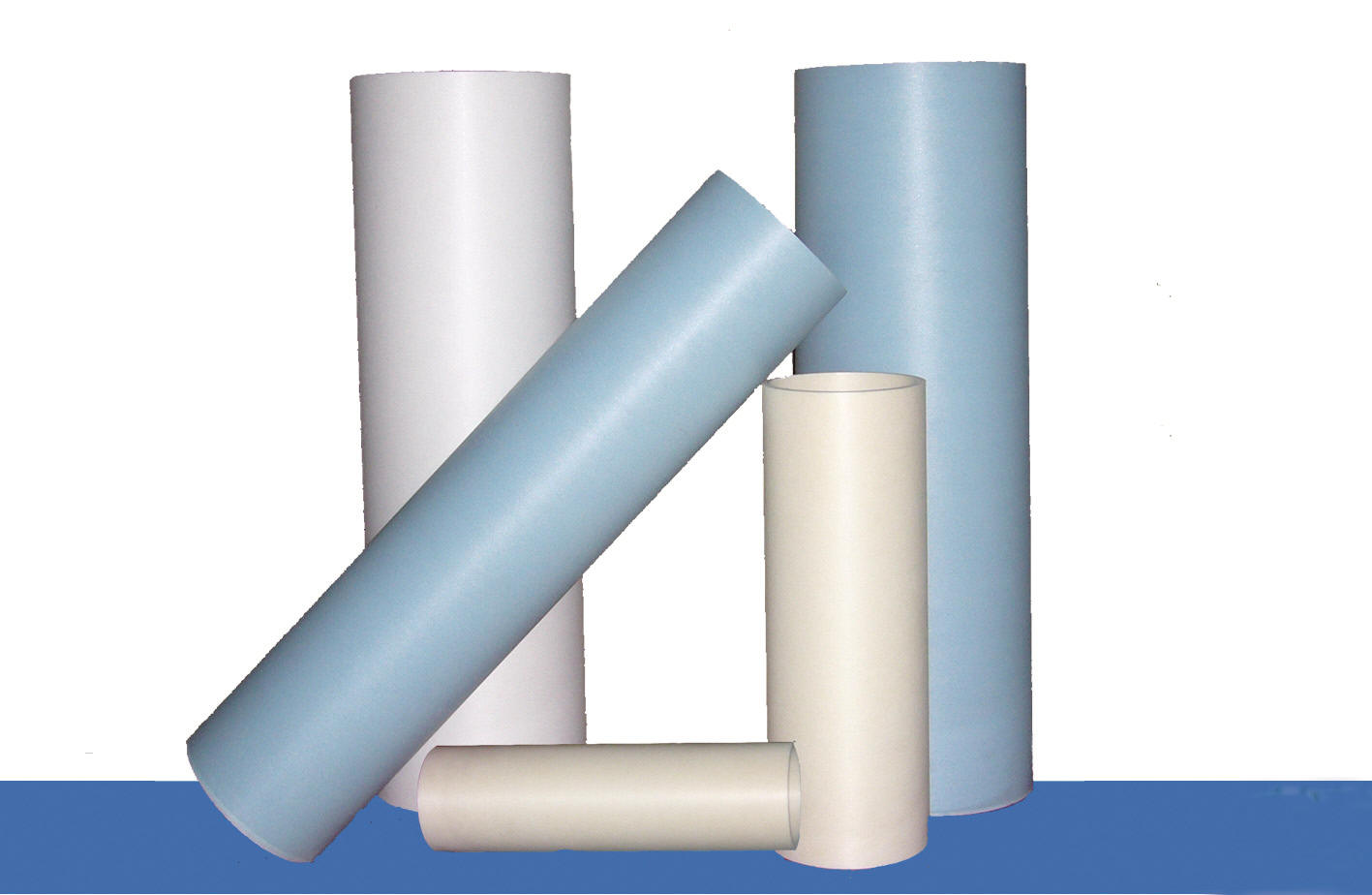

DMD100 (100% saturated, F-class)
Properties and Application:
DMD100 is made of two layers of electrical polyester non-woven(PET-fleece) with one layer of polyester film, laminated with
a high temperature adhesive system, 100% filled with resin(saturated), providing a smooth, varnish like surface, with good
mechanical, electrical and thermal properties, and is widely used for slot, phase and liner insulation in F-class motors.
Main Specification:
Properties | Values | ||||||||
Structure(mil) | 222 | 232 | 242 | 252 | 262 | 27H2 | 2102 | 2122 | |
Nominal THK (mm) | 0.15 6(mil) | 0.18 7(mil) | 0.20 8(mil) | 0.23 9(mil) | 0.25 10(mil) | 0.30 12(mil) | 0.35 14(mil) | 0.40 18(mil) | |
THK Tolerance(mm) | 0.020 | 0.020 | 0.020 | 0.020 | 0.020 | 0.030 | 0.040 | 0.040 | |
Specific weight(g/m^2) * | 175 | 205 | 245 | 275 | 315 | 375 | 465 | 525 | |
Tensile Strength(N/cm)− | MD | 80 | 100 | 120 | 130 | 150 | 170 | 200 | 300 |
TD | 80 | 90 | 105 | 115 | 130 | 150 | 180 | 220 | |
Elongation % − | MD | − 10 | − 5 | ||||||
TD | − 15 | − 5 | |||||||
Breakdown Voltage(KV)− | RM temp | 6 | 7 | 9 | 10 | 12 | 15 | 18 | 20 |
155\ 2≧ | 5 | 6 | 8 | 9 | 10 | 13 | 16 | 18 | |
Bonding Strength at RM temp. | No delamination | ||||||||
Bonding Strength at 180\2c 10min | No delamination, No blister, No adhesive flow | ||||||||
Bonding Strength at wateriness | No delamination |
*Above values are only for customers¨ referce, exact testing value is available.
Product supply:
1, Standard Width: 990mm
2, Packing: 50 Kg/Roll, In Carton and Pallet
3. MOQ: 1,000 Kg in a lot, and 500 Kg each size..
4. Color available: White, Pink, Blue, Green, etc.
Note:
1. Above values are the accumulative typical ones by recognized
testing method, but, in order to ensure you to select our products
properly, please refer to above specification and test the samples
based on your using purpose or feel free to contact our engineers
for further and better understanding.
2. The color is only confirmed by samples.
_________________________________________
