                            DTK-70 Inner-Coated Powder for Transmission Pipe

¡¡

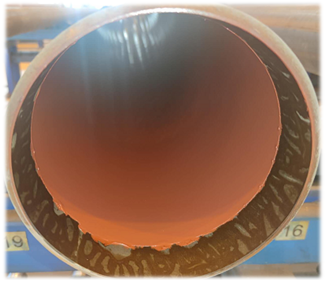

DTK-70 is a thermosetting epoxy powder coating for inner coater of pipeline. It meets with PC8007 red primer

to make high-quality coating. Which has the tough, excellent flexible, high impact resistance, high gloss, thick-

film coating for secondary and recovery system, particularly CO2.

The coating surface is very smooth, which greatly improves the hydraulic efficiency of the pipeline system. It is

very suitable for CO2, injection, oil and gas, sewage and other working conditions that need to improve corrosion

resistance. Her film thickness is generally more than 250 microns, and it is applicable to all kinds of transmission

pipes, sliding sleeves, fittings, etc. below 105 ¡æ (221F).

1.Technical Specifications

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

No.

Item

Specifications

Method

1

Color

Dark Red

Visual

2

Curing time

230¡ãC, 45~60min



3

DSC

Tg2¡Ý105¡ãC

¦¤Tg<= ¡À2¡ãC

CSA Z245

Clause 12.7

4

Coating thickness

250~500um (10~20mil)

250~800um (10~32mil)£¬Custom

NACE TM0185-2006

5

Service temperature

¡Ü105 ¡ãC(221 F)



6

Service pH range

4-11



7

Coating roughness

¡ÜRa1.6um (Rz6.3umor ¨Œ6)



8

Abrasion resistance

<50 mg £¬TABER Abraser

[CS-17,1kg,1000r]

ASTM D4060

9

Impact resistance

5J

ISO 6272-1

10

Adhesion

Pull-off test£º>20 MPa

X cutting method£º5A

ISO 4624

ASTM D3359

11

Autoclave tests

No blistering, cracking, swelling or softening or loss of adhesion



 2. Features

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

Recomm

ended Service

Benefits

Oil and gas Transmission pipeline

CO2/injection/oil and gas/sewage pipeline

Chemical pipeline and fittings

Excellent tough, flexible

Excellent adhesion

Wide temperature and pH range of 4-11

Good corrosion resistance

High Gloss, Improve hydraulic efficiency

High impact resistance



3.Autoclave tests

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

¡¡

No.

Test Medium

Test Temp.

Test Pressure

Test Time

1

0.5%H2S,5%CO2£¬94.5%N2

5%NaClSolution

95ºC

3MPa

1000H

2

100%CO2

5%NaClSolution

95ºC

3MPa

24H

3

5% H2S,25% CO2,70%CH4

5%NaCl Solution

130¡æ

3MPa

750 H



Note:

1.Above values are the accumulative typical ones by recognized testing  method, but, in order to ensure you to

select our products properly, please refer to above specification and test the samples based on your using

purpose or feel free to contact our engineers for further and better understanding.
